Pre-Order Instant60 LV-84 Case Glow Kit - January 2020 Group Buy
- LV-84 Clear 3D Printed Case
- Instant60 PCB - Matte Green, from Cannonkeys - Designed by Upas
- 5 Degree Wedge

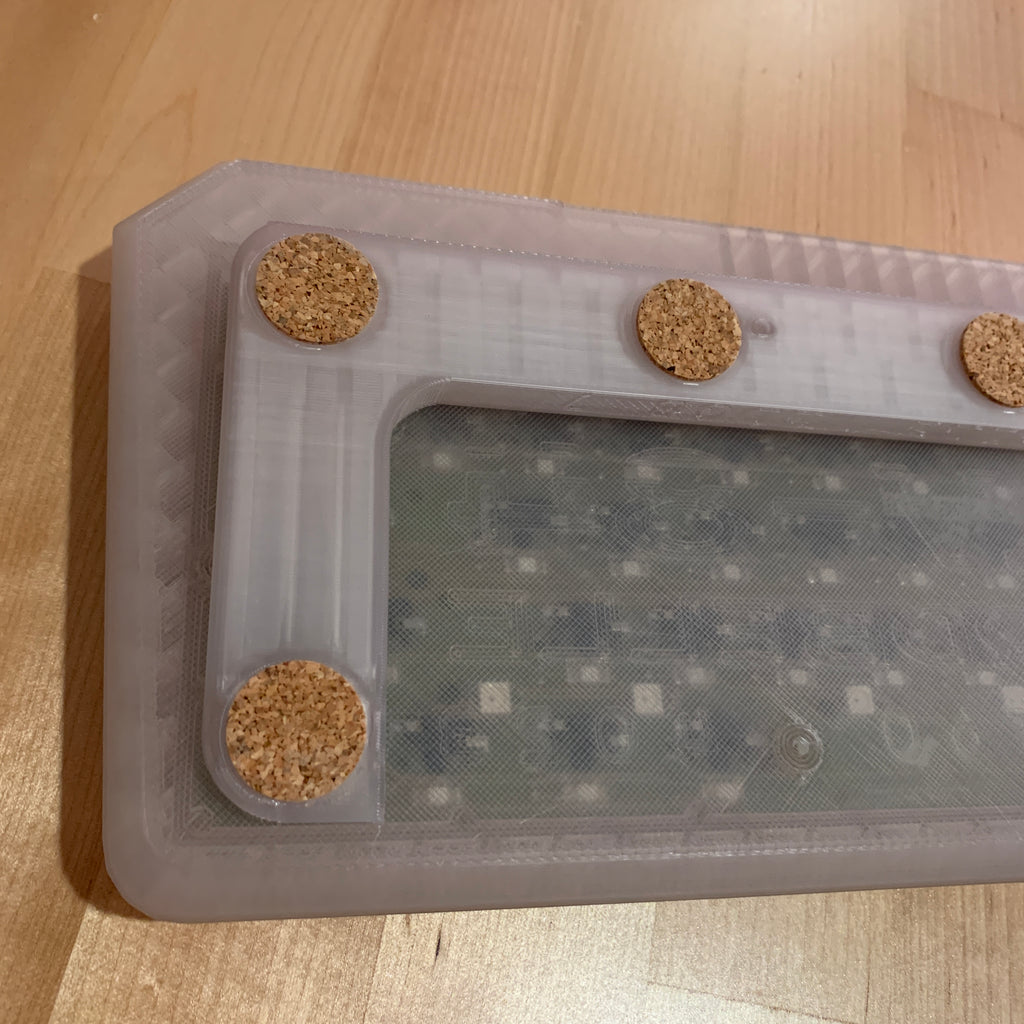

- Cork Feet
- 6mm Clear Acrylic Plate
- Costar style Stabilizers
- Custom 3D Printed SLA Clear Resin Stabilizers Plate Adapters
- Switches and Keycaps not included

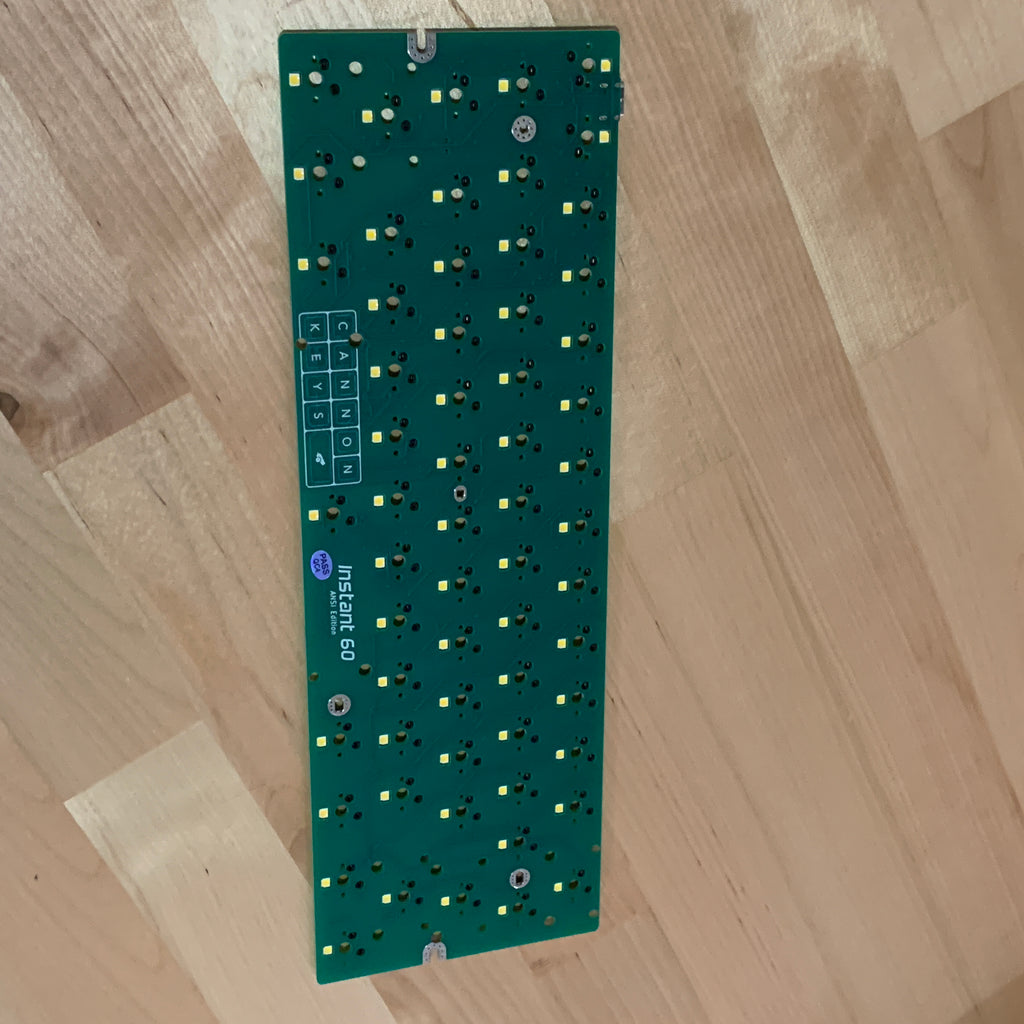

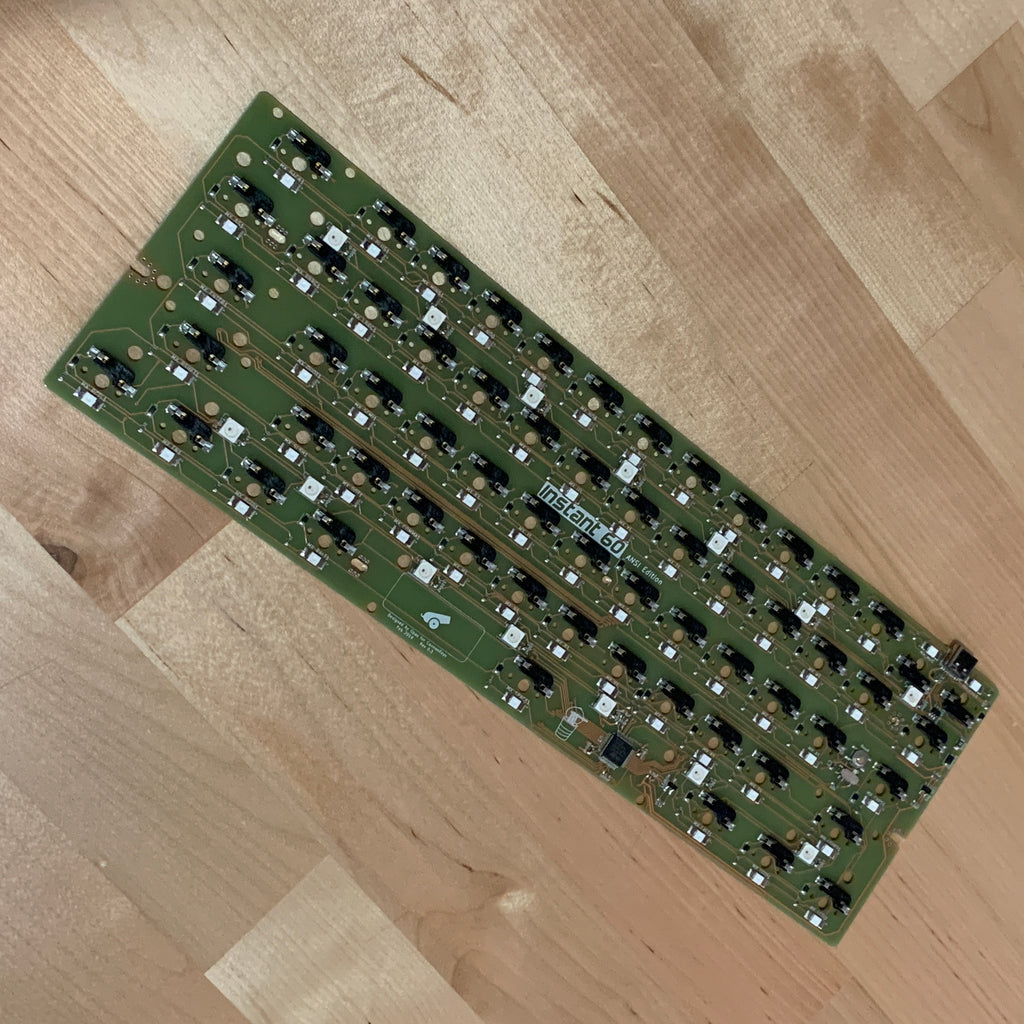

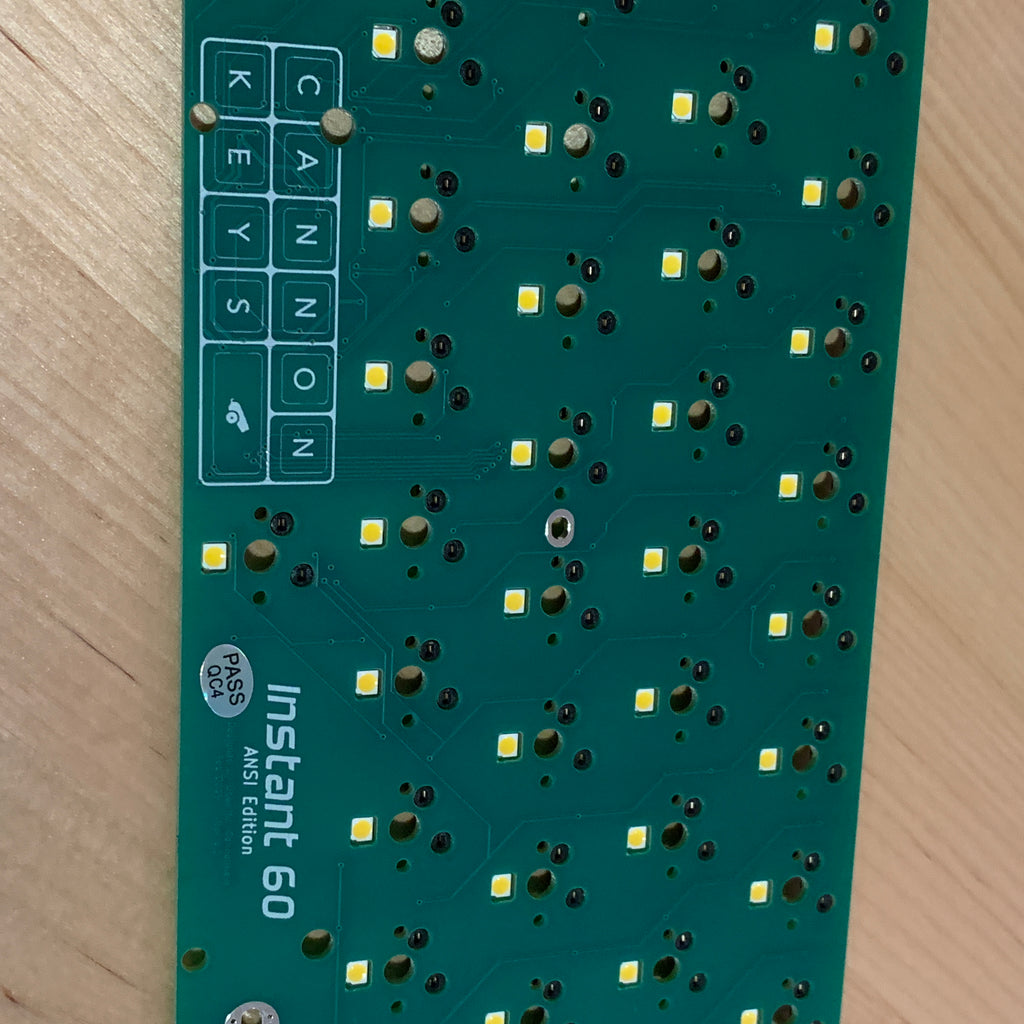

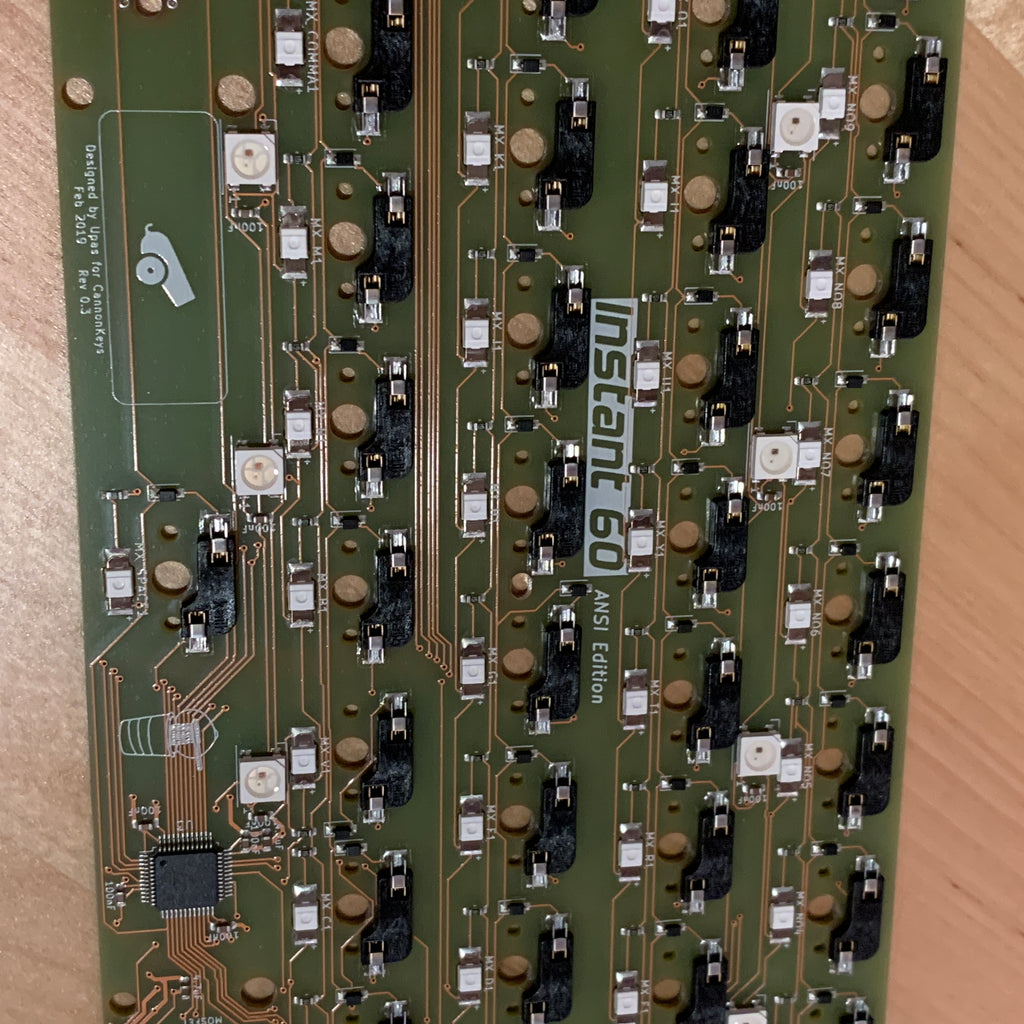

The Instant60 is a hotswap PCB with full underglow RGB lighting and white in-switch LEDs built-in.

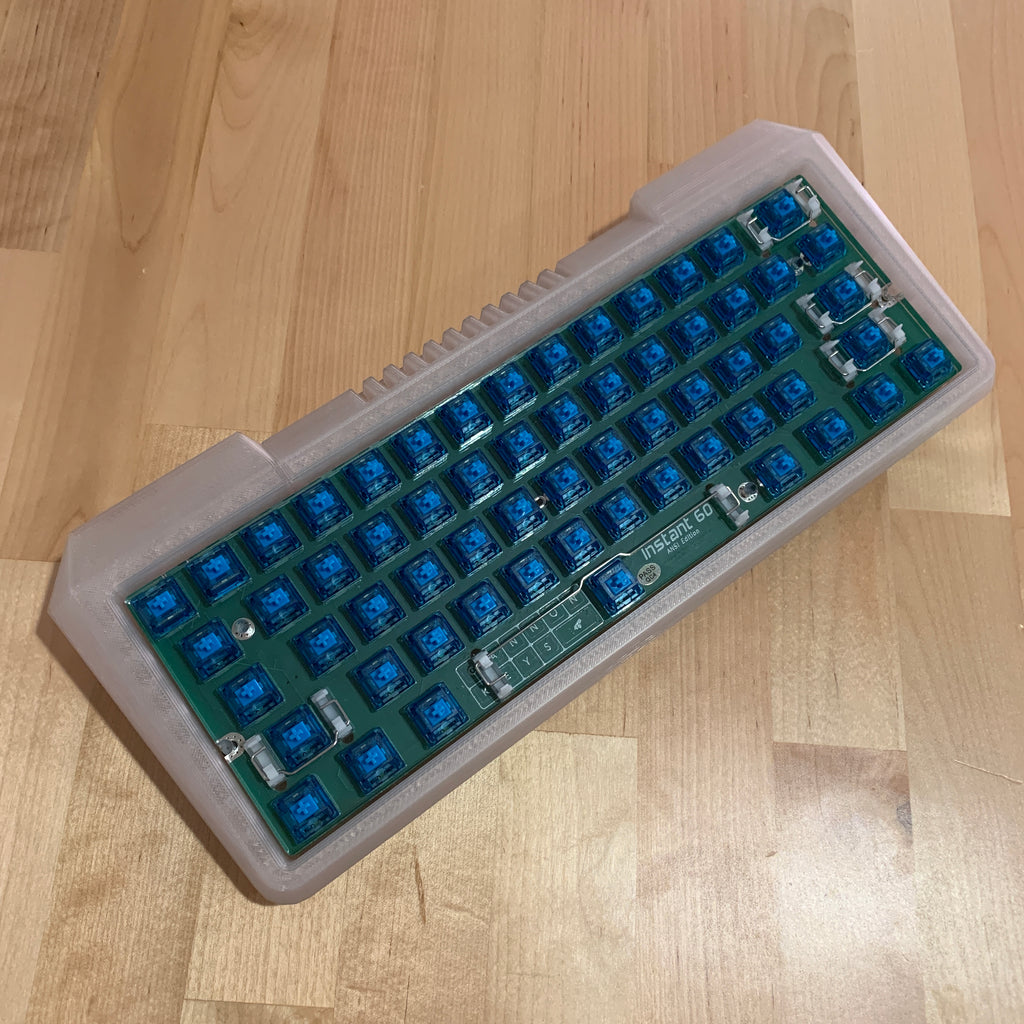

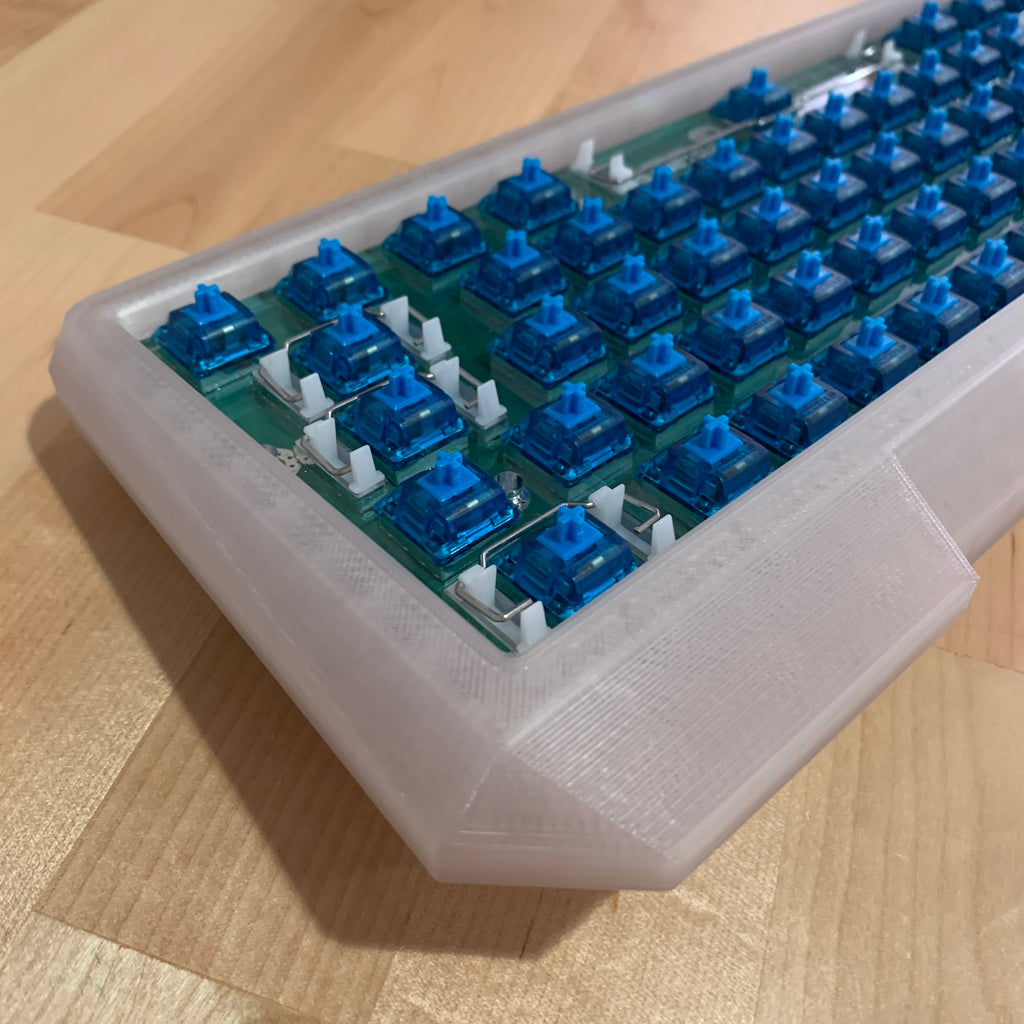

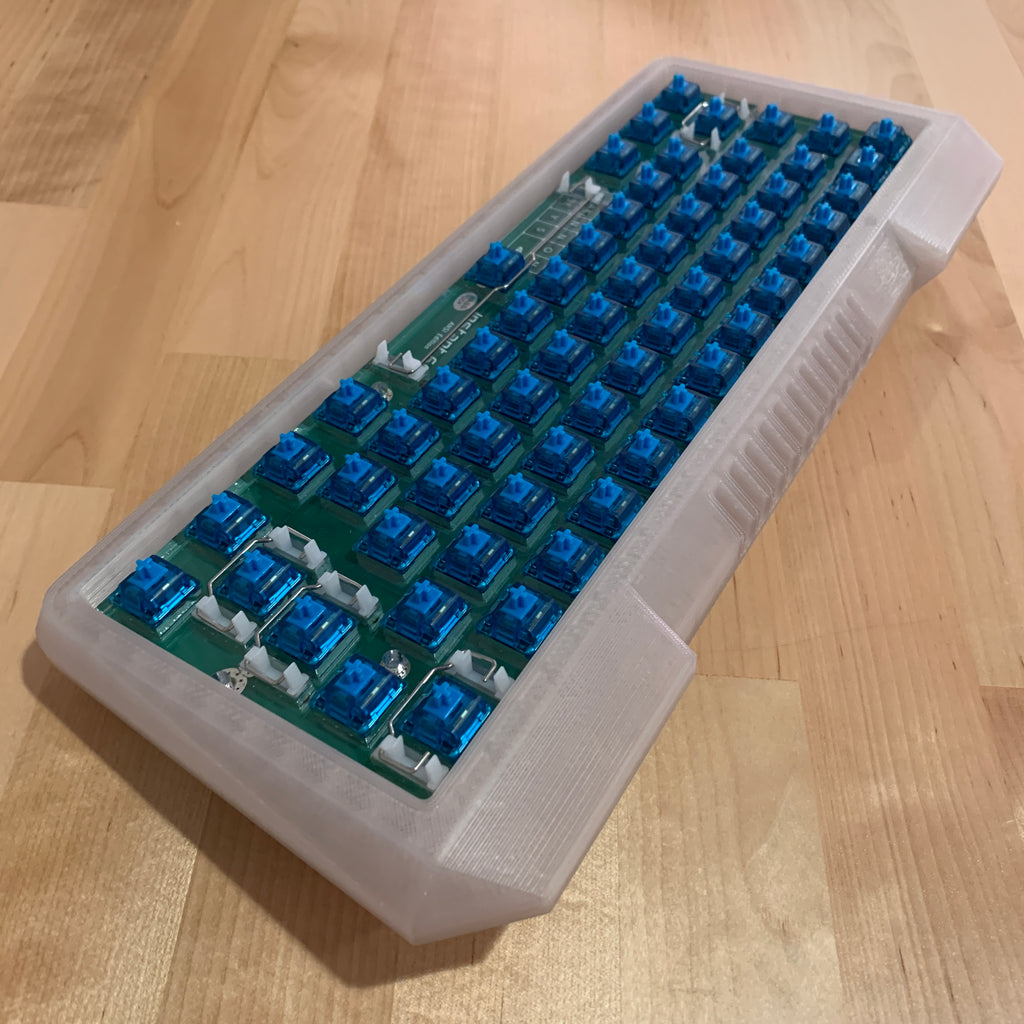

Switches are not included, but pictured to give any idea of what the kit looks like assembled. Pictured switches are Gateron Blue Ink.

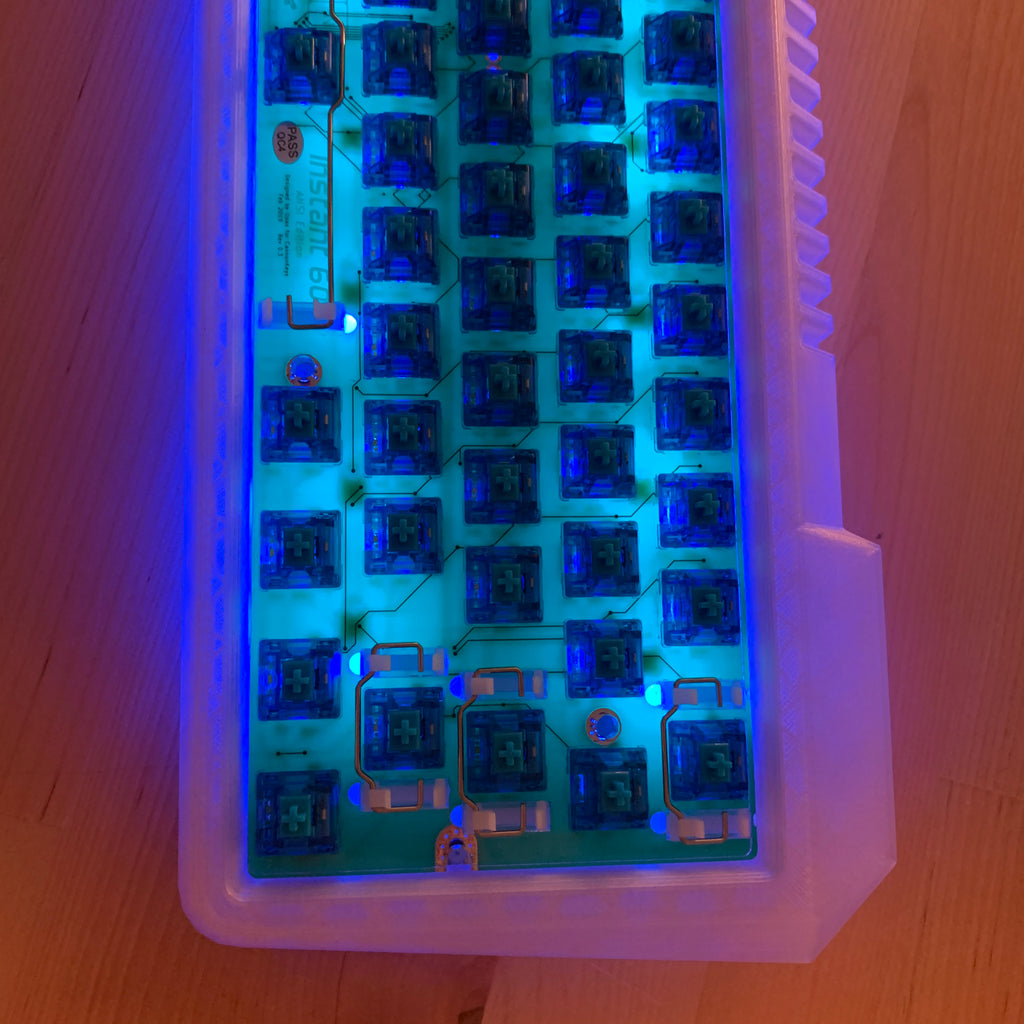

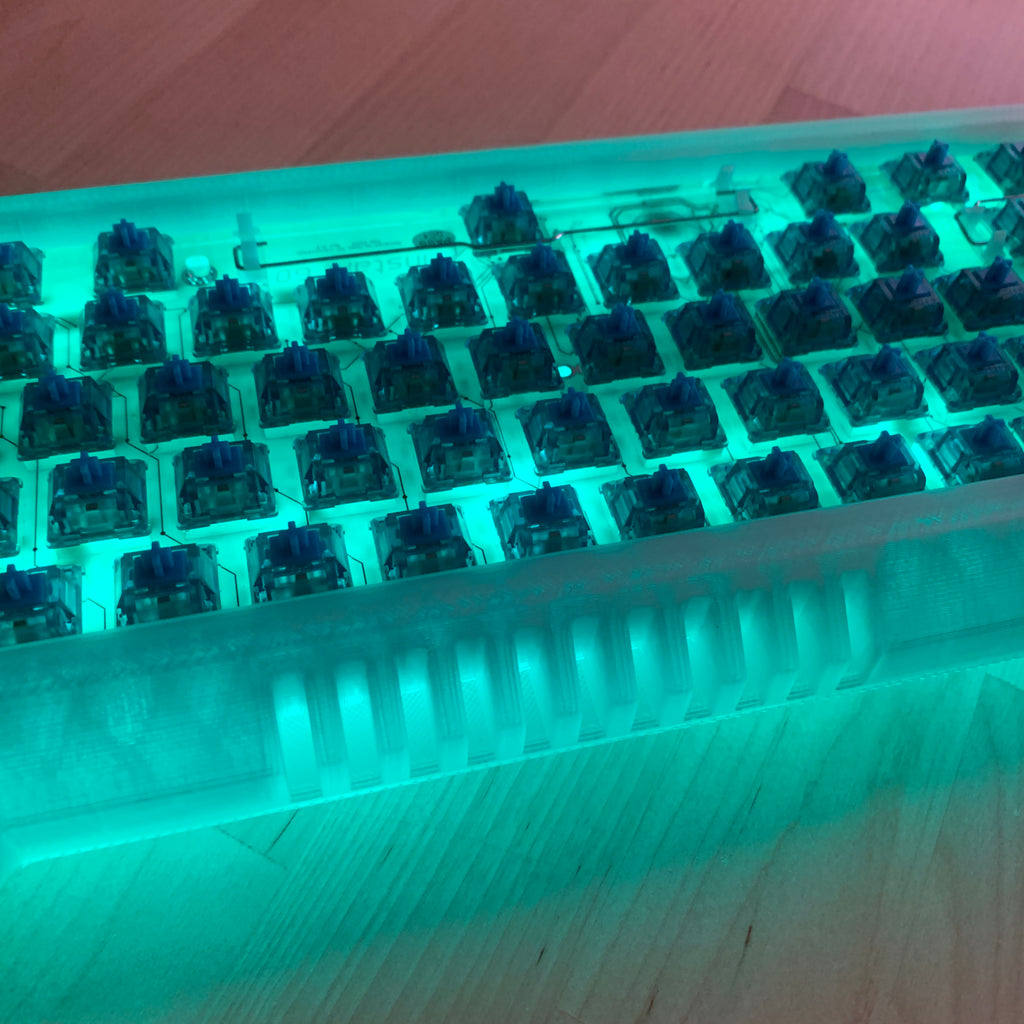

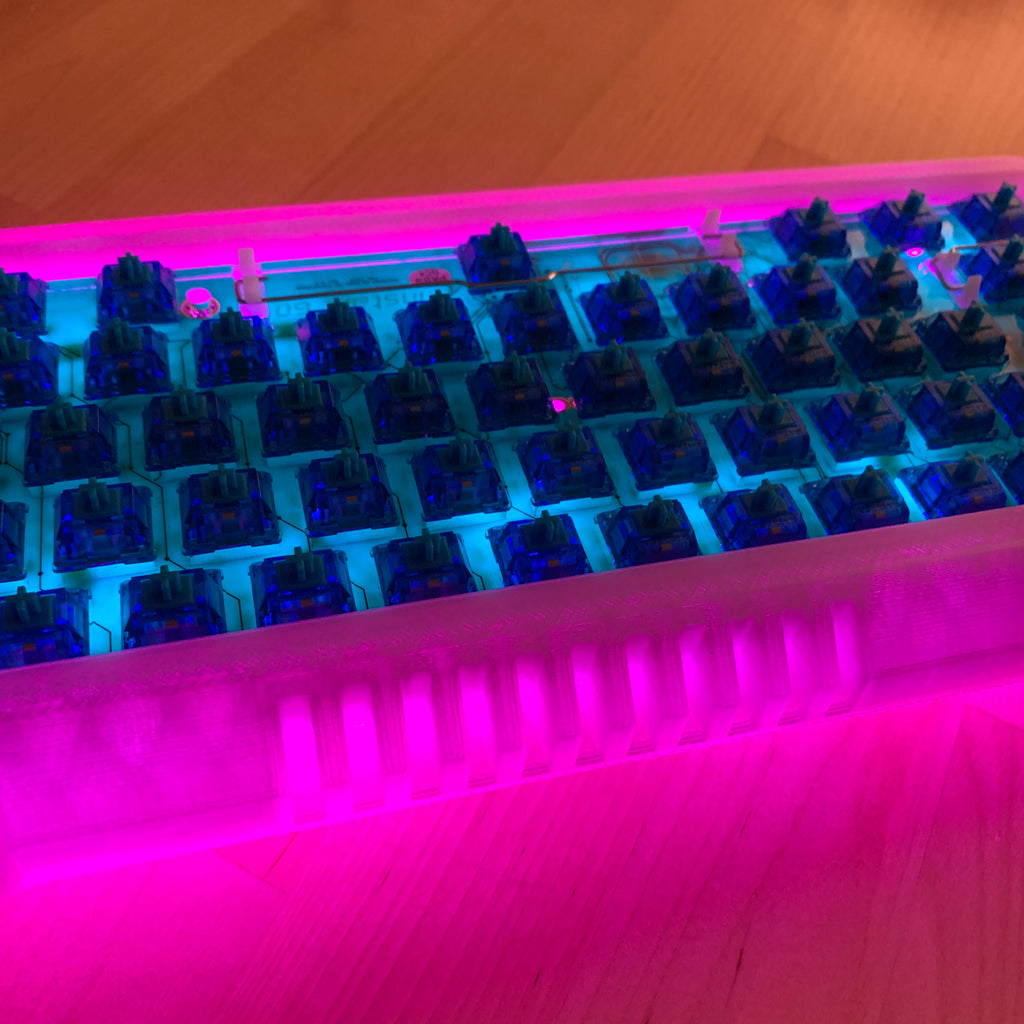

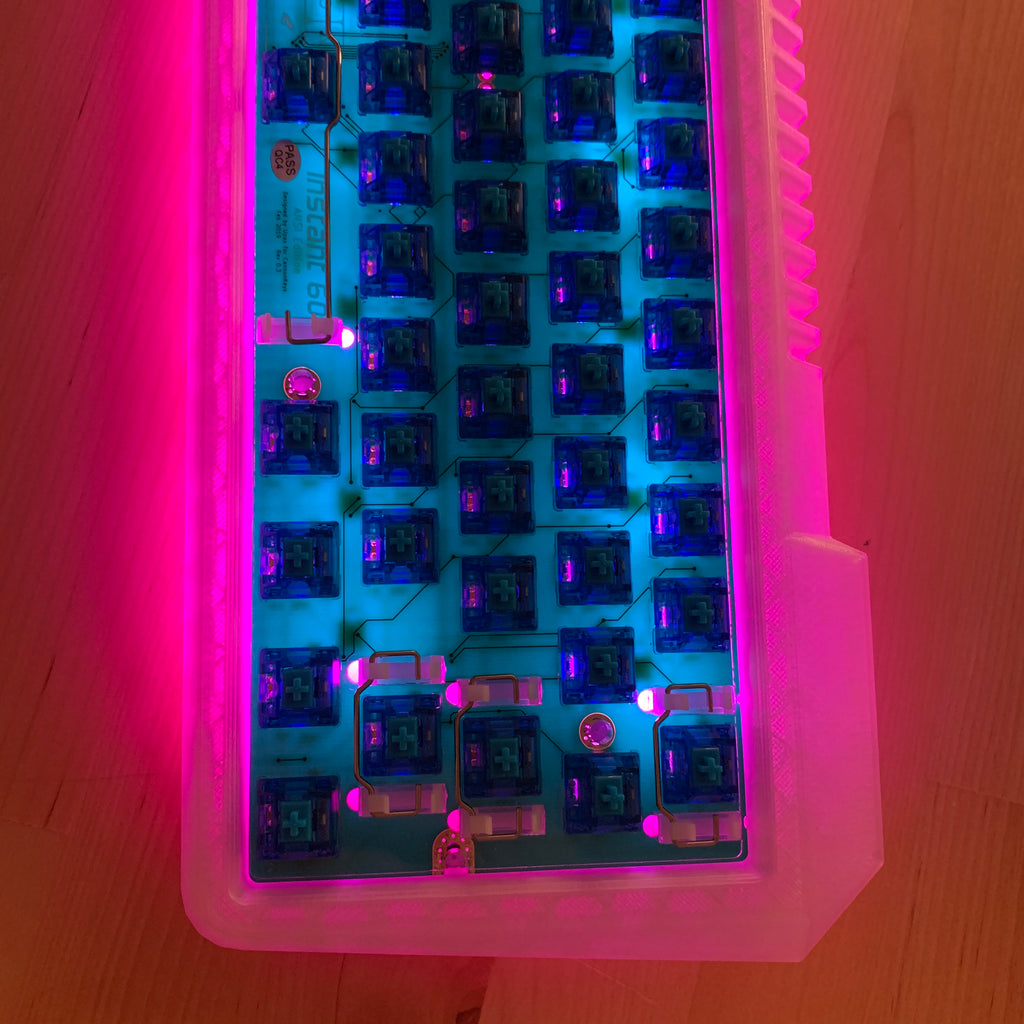

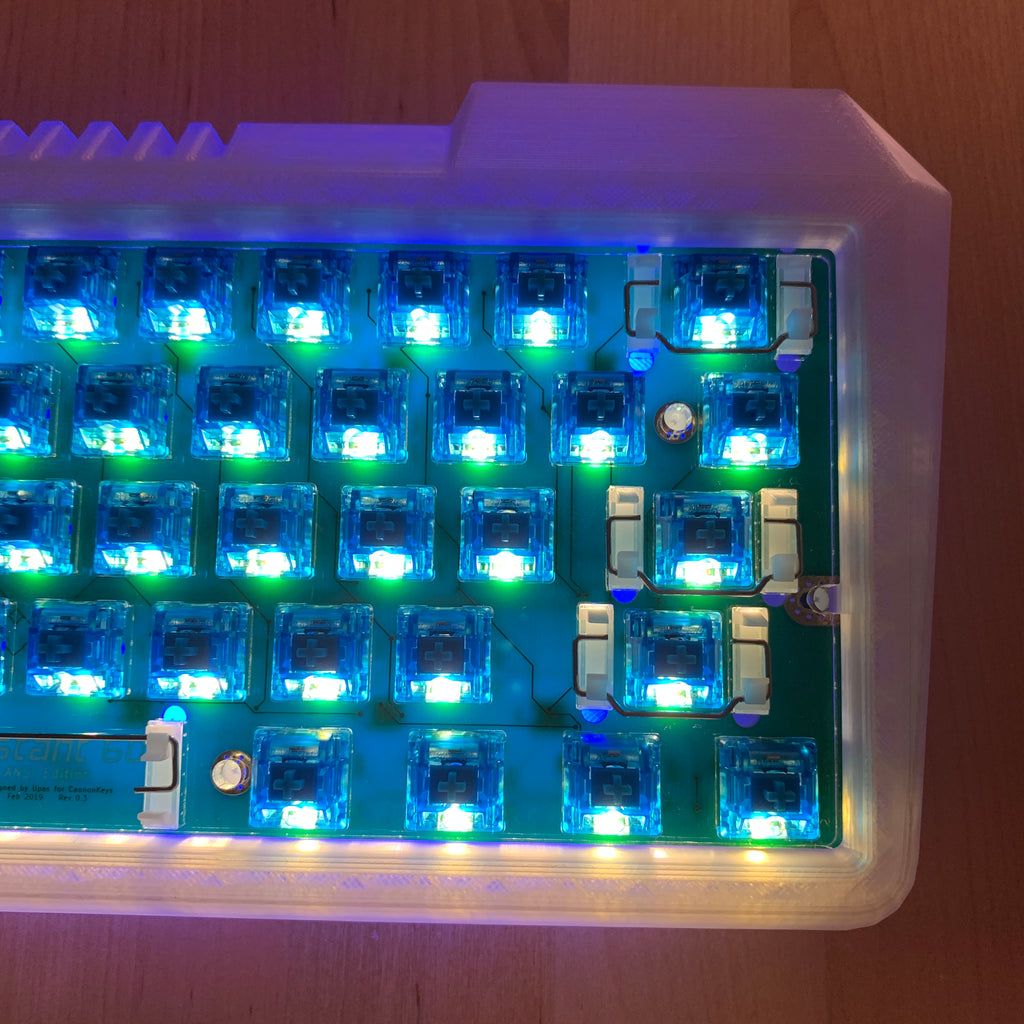

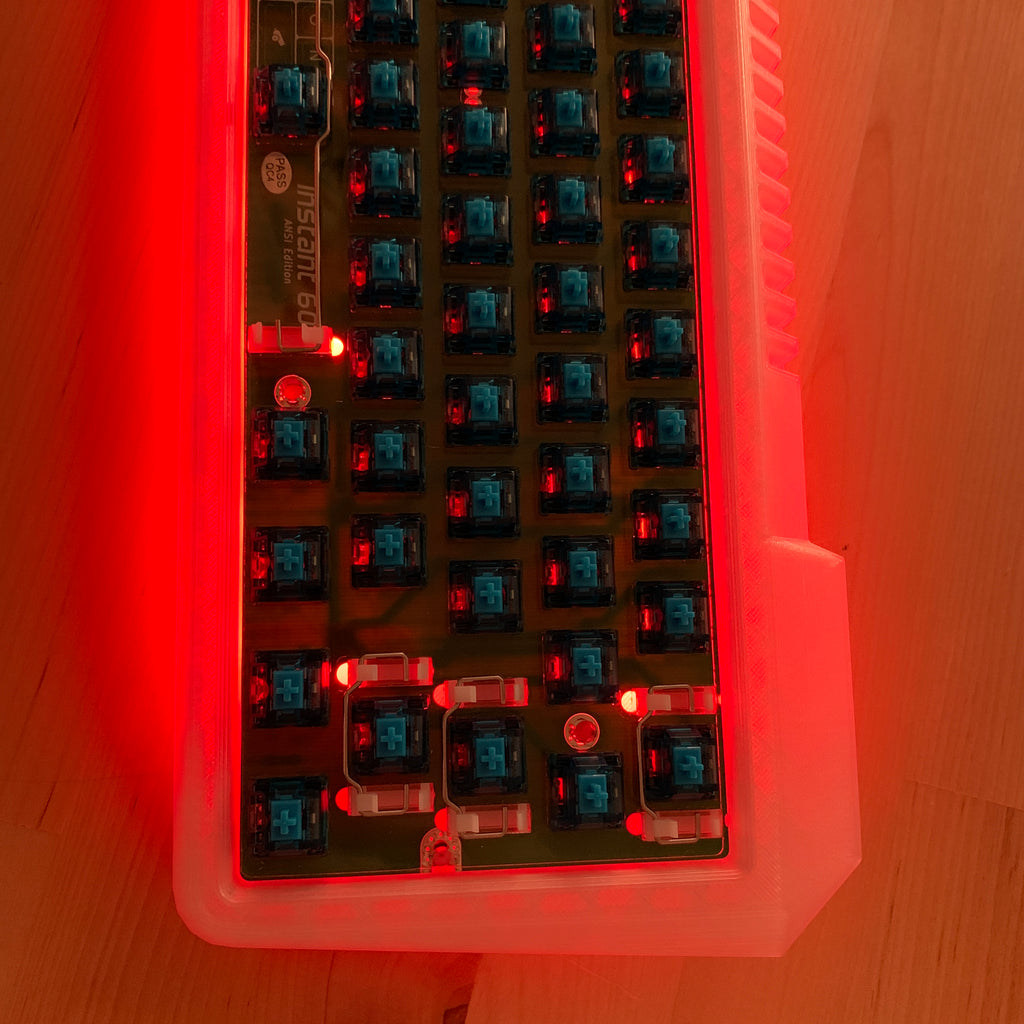

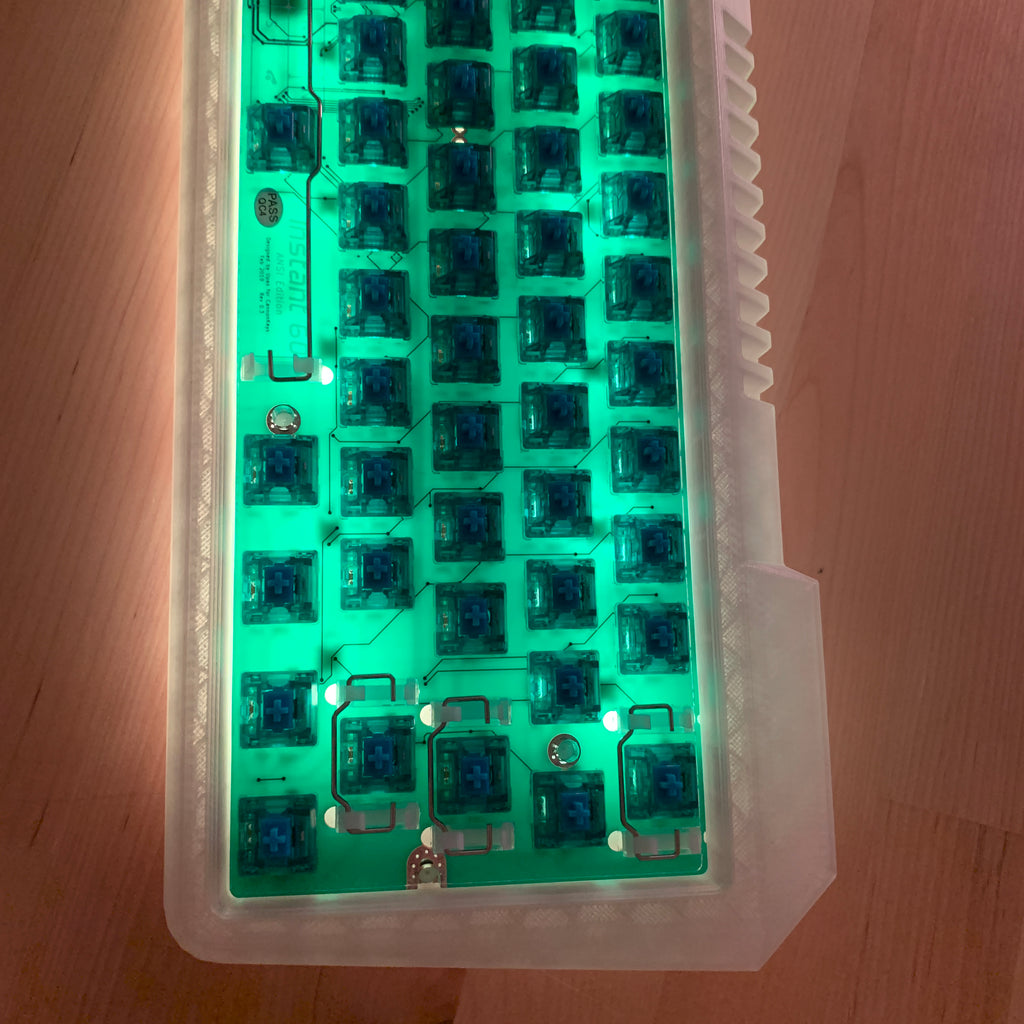

The underglow lighting and switch lighting can both be separately toggled and the keyboard has a variety of glow effects.
This has the stock ANSI programmed layout, but QMK firmware can be modified to customize keys differently if desired.

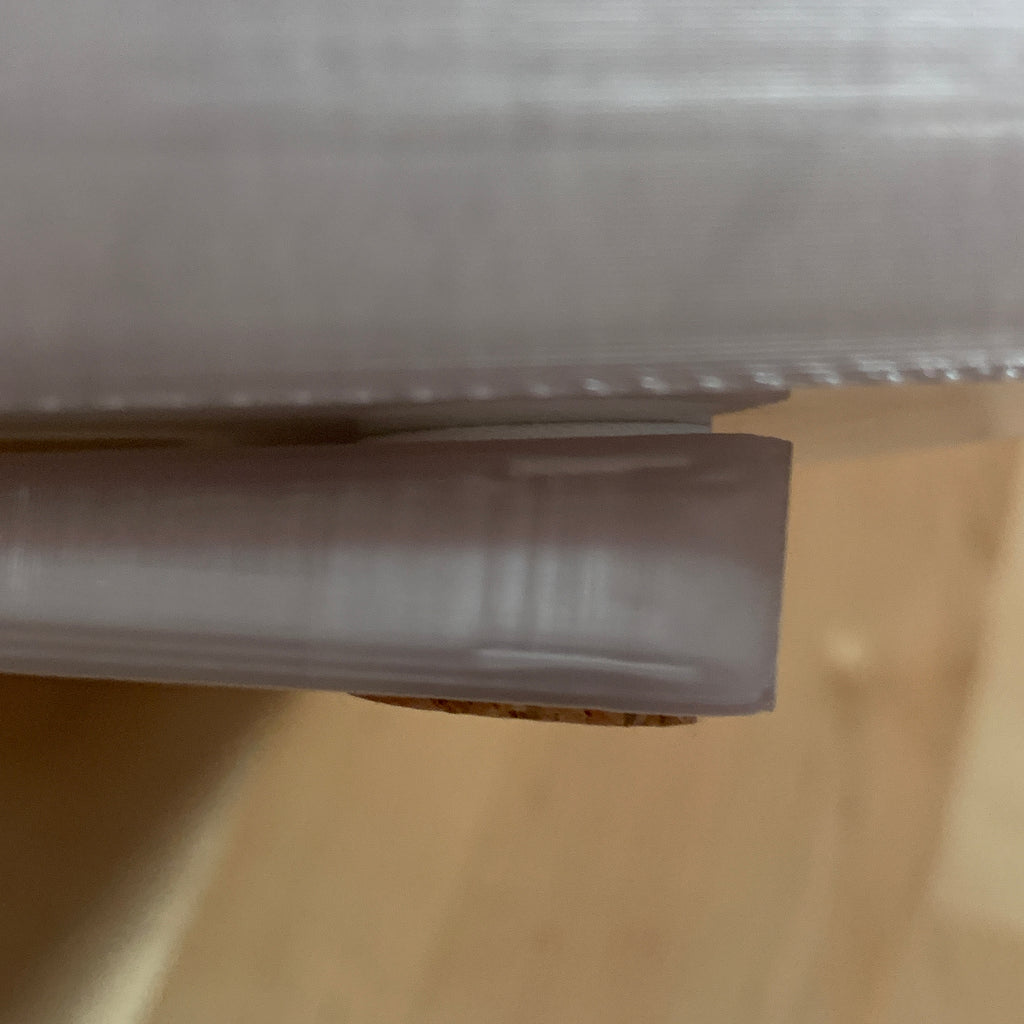

A 5 degree wedge is attached with double-sided foam adhesive, so the angled wedge also cushions when typing.
The standard 4mm steel screws I ship with cases are included as well as 6mm nylon screws and small o-rings.
The o-rings are experimental, but users can test out using the nylon screws with an o-ring between the PCB and case risers for a different typing feel.
The plate is 6mm clear acrylic and includes the Costar adapters pre-installed.
SLA printed in clear resin, the adapters allow the stabilizers to clip into the 6mm plate as if it were the same as a 1.5mm plate.
Even though the plate is 6mm, MX style switches have long enough pins to still connect with the hotswap sockets. If a switch does not work, it's somewhat easy to bend pins when inserting, so you may need to straighten a pin out.
These are scheduled to ship in mid to late January. The PCBs are already in stock and ready for the cases to be printed.
Also, DZ60 glow kits are coming soon as well for pre-order, for people who may only want a PCB and case without the extra plate and stabilizers.
